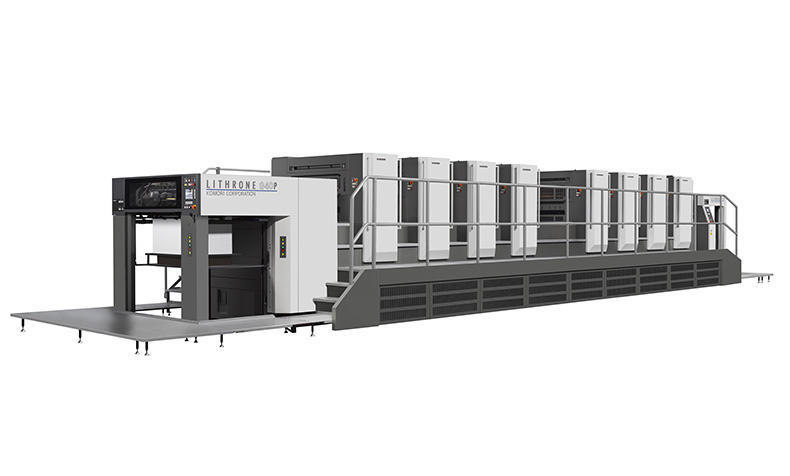

LITHRONE G40P advance

High production efficiency and high rate of return of one-pass printing

The Lithrone G40P advance enables high-quality two-sided printing in one pass and straight multicolor printing in one machine. Equipped with Komori’s own high-performance perfecting mechanism configured by three double-size cylinders - impression cylinder, transfer cylinder and perfecting cylinder. Komori’s unique sheet transport system - enabled by the stress-free sheet transfer attributable to this ideal cylinder configuration and by the lower unit air control - allows two-sided printing at 15,000 sheets per hour. Stable sheet transport thanks to the minimal movement along with the small number of gripper changes reduces scratches and smears, lessens curling, and at the same time assures exceptional register accuracy.

In addition, a variety of automatic devices and systems, including the KHS-AI integrated control system, the benderless Full-APC system*, and suction drum lateral movement linked to paper size presets, slash the need for spare paper for printing and preparation tasks and also dramatically cut lead time. Superb performance with heavy stock in either single-sided or double-sided printing mode means that a variety of stunning high added value printing effects can be obtained with special inks and overprint varnish. The Lithrone G40 advance is a machine of matchless flexibility that addresses a variety of needs at the highest level. By maximizing the benefits of one-pass printing, the Lithrone G40 advance yields highorder print quality as well as outstanding productivity and profitability.

* Option

Features

• Enables high-quality two-sided printing in one pass and straight multicolor printing in one machine.
• Equipped with Komori’s own high-performance perfecting mechanism configured by three double-size cylinders. Komori's unique sheet transport system enabled by the stress-free sheet transfer and lower unit air control allows two-sided printing at 15,000 sheets per hour.
• Equipped with the Asynchronous Automatic Plate Changer (A-APC)* for significantly shorter makeready times. Furthermore, the Lithrone G40P advance is also equipped with the H-UV/H-UV L (LED)* system, which enables fast print drying and short turnarounds.
  A wide range of other options is also available.
• Superb performance with heavy stock in either single-sided or double-sided printing mode means that a variety of stunning high added value printing effects can be obtained with special inks and overprint varnish. The Lithrone G40P advance is a machine of matchless flexibility that addresses a variety of needs at the highest level.
• *Optional specification

Model		LITHRONE G40P advance
Number of colors		4-10
Max. sheet size	mm	720×1030
Max. printing area	mm	710×1020 (Single-sided) 700×1020 (Double-sided)
Plate size	mm	800×1030
Feeder pile height	mm	1,450
Delivery pile height	mm	1,380

* Margin for vacuum wheels on back side of sheet required for double-sided printing.

* Maximum printing speed varies according to printing conditions.

* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
