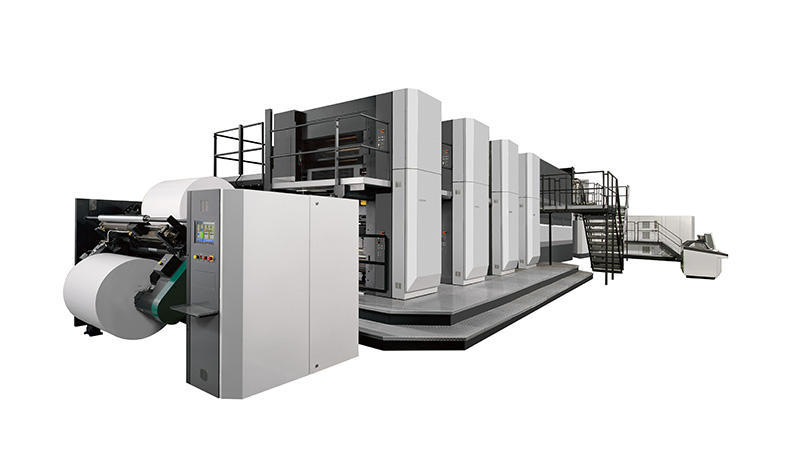

SYSTEM 38D
SYSTEM 38D
Features
- High total efficiency web offset press offering flexibility that ensures high print quality, short makeready, and excellent short-run capability.
- Equipped with the KHS-AI (Advanced Interface) as standard equipment. The press thus effectively achieves shortened makeready time and a reduction in waste paper even with this 32-page web offset press. Also, equipping the press with AI-Link* (integrated control system that covers peripheral devices) allows for a further reduction in waste paper and shorter makeready time. (*Optional specification)
- Double chopper combination folder (merged delivery type) facilitates production of a wide variety of signature specifications: A3 x 8P, A3 x 16P collect, A5 x 2up x 16P, A5 x 2up x 32P collect, A4 x 16P, and A4 x 32P collect.
| Model | SYSTEM 38D | ||
|---|---|---|---|
| Cutoff | mm | 625(1,250*1) | 578(1,156*1) |
| Max. web width | mm | 965 | 965 |
| Max. printing area * (length×width) | mm | 1,241×965 | 1,147×965 |
| Plate size (length×width) | mm | 1,275×1,000 | 1,181×1,000 |
| Paper stock range | gsm | 40-130 | 40-130 |
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
*1:Plate cylinder circumferential length.
