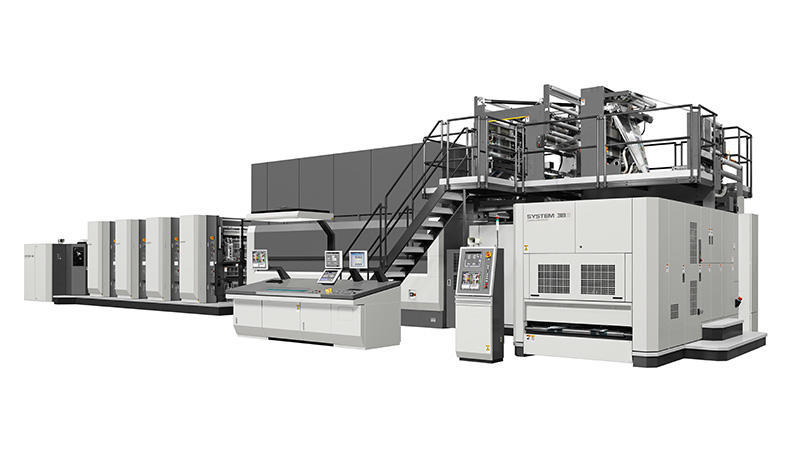

SYSTEM 38S
SYSTEM 38S
Features
- World standard in single-size blanket cylinder web capable of consistent, high-quality printing.
- Available in three models, offering cutoff size of 625mm, 578mm or 598.5mm.
- Equipped with Full-APC* for changing all 8 plates in two minutes as well as a range of value-adding folding options to provide the flexibility for meeting all customer needs.
- Equipped with the KHS-AI (Advanced Interface) as standard equipment. The press thus effectively achieves shortened makeready time and a reduction in waste paper. Also, equipping the press with AI-Link* (integrated control system that covers peripheral devices) and Smart Sequence allows for a further reduction in waste paper and shorter makeready time.
- *Optional specification
| Model | SYSTEM 38S | |||
|---|---|---|---|---|
| Cutoff | mm | 625 | 598.5 | 578 |
| Max. web width | mm | 965 | 965 | 965 |
| Max. printing area * (length×width) | mm | 617×965 | 590×965 | 570×965 |
| Plate size (length×width) | mm | 649×975 | 623×975 | 602×975 |
| Paper stock range | gsm | 40-130 | 40-130 | 40-130 |
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
